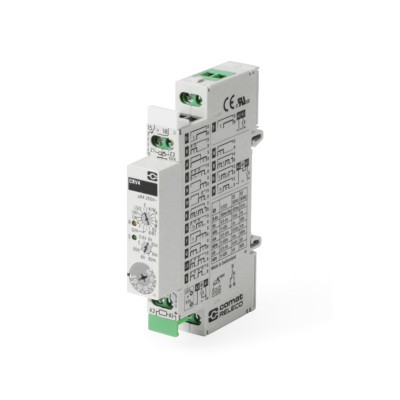

višenamjenski relej
External potentiometer
Broj kontakata: 1 CO
Materijal kontakata: AgNi
Zaštita: IP20
Materijal kućišta: PC
Nominalni napon: 24/240 V AC/DC
Nazivni napon: 250 V
Nazivna struja: 6 A
Minimalno opterećenje: 10 mA, 10 V
Udarna struja: 15 A, 10 ms
Nazivno opterećenje AC-1: 1500 VA
Mehanička izdržljivost (ciklusi): 30 000 000
Vremenska skala:
- t (t1) 50 ms … 0.6 s / 0.5 s … 6 s / 5 s … 60 s / 0.5 min … 6 min / 5 min … 60 min / 0.5 h … 6 h / 5 h … 60 h
- t2 (G/H 1) 60 ms / 0.6 s / 6 s / 0.6 min / 6 min / 0.6 h / 6 h
- t2 (G/H 2) 0.6 s / 6 s / 60 s / 6 min / 60 min / 6 h / 60 h
- 0.6 s / 6 s / 60 s / 6 min / 60 min / 6 h / 60 h
Funkcija vremena:
- E = On delay
- A = Off delay
- F = On and off delay
- W = One shot leading edge
- N = One shot trailing edge
- Q = One shot leading and trailing edge
- K = Puls shaping
- L = Puls shaping (retrigger)
- M = Puls shaping
- B = Blinker (Pulse start)
- B1 = Blinker (Pulse start, trailing pulse)
- B2 = Blinker (Interval start)
- G = On delay single shot
- H = On delay single shot
- S = Step-switching
- LS = Step-switching
